Handheld and Lavalier Combo Wireless Systems

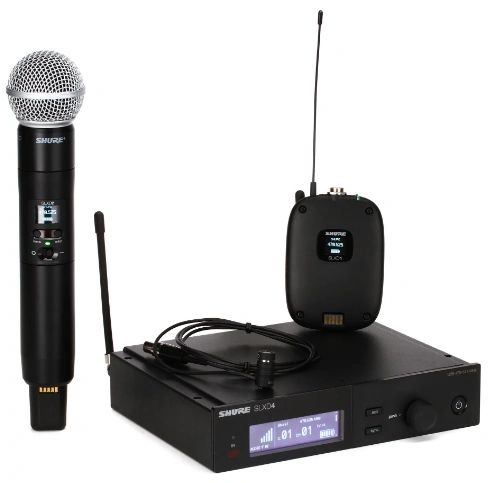

operating in the G58 Band (470 to 514 M㎐) provides peace of mind with rock-solid RF performance and ease of setup. With Shure's industry-leading digital wireless technology and design, the versatile SLXD124/85 ensures an ideal solution for a range of wireless applications. The bodypack's ergonomic, durable plastic construction and long life from 2 AA or optional Shure SB903 rechargeable battery will withstand the rigors of active, all-day usage. The SLXD2 features an interchangeable vocal microphone systems that accepts a variety of capsule options to ensure the right solution for any user, and this model includes the legendary SM58 capsule, the industry standard cardioid dynamic vocal mic. The SLXD124/85 includes the premium cardioid condenser WL185 lavalier mic for general purpose sound reinforcement applications requiring good rejection of ambient noise. The networkable SLXD4 receiver with metal construction delivers transparent, 24-bit digital audio and easily syncs with the wireless transmitters.

FEATURES:

Transparent 24-bit digital audio

Extended 20 ㎐ to 20 k㎐ frequency range (microphone dependent)

120㏈ dynamic range

Easy pairing of transmitters and receivers over scan and IR sync

Rugged and durable construction

Specifications for the Shure SLXD124/85

SLXD1 DIGITAL WIRELESS BODYPACK TRANSMITTER

Battery Type Rechargeable Li-Ion Battery Type or 1.5 V AA batteries

Dimensions (H × W × D) 3.86 × 2.68 × 1.0 in

Weight 3.1 oz

Housing PC/ABS

AUDIO INPUT

Connector 4-Pin male mini connector (TA4M)

Configuration Unbalanced Impedance 1 MΩ

Maximum Input Level 8.2㏈V (2.57 Vrms, 7.27 Vpp)

Preamplifier Equivalent Input Noise (EIN) –118㏈V

RF OUTPUT

Antenna Type ¼ Wave

Occupied Bandwidth <200 ㎑

Modulation Type Shure Propietary Digital

Power 1 mW/10 mW

Varies by region.See Frequency Range and Output Power Table.

MICROPHONE OPTIONS (SEE SHURE.COM FOR MORE OPTIONS)

WL183 Condenser Lavalier Microphone

WL185 Condenser Lavalier Microphone

WL93 Miniature Condenser Microphone

MX153T Headworn Earset Microphone, Tan

MX153B Headworn Earset Microphone, Black

SM35 Condenser Headworn Microphone

WB98H/C 98H/C Clip-On Condenser Instrument Microphone

WA305 Locking Instrument Cable

SLXD4 DIGITAL WIRELESS RECEIVER

Dimensions (H × W × D) 1.65 × 7.76 × 5.98 in

Weight lb (816 g) - without antennas

Housing Steel

Power Requirements VDC @ 600 mA - Supplied by external power supply (tip positive)

RF INPUT

Spurious Rejection (Typical)

Connector Type BNC

Impedance 50 Ω

AUDIO OUTPUT

Gain Adjustment Range –18 to +42㏈ in 1㏈ steps

Configuration 1/4" (6.35㎜)Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)

XLR Balanced (1=ground, 2=audio +, 3=audio –)

Impedance 1/4" (6.35㎜) 1.3 kΩ (670 Ω Unbalanced)

XLR (line) 400 Ω (200 Ω Unbalanced)

XLR (mic) 150 Ω

Full Scale Output 1/4" (6.35㎜) +15㏈V differentially (+9㏈V single)

XLR (LINE setting) +15㏈V

XLR (MIC setting) –15㏈V

Mic/Line Switch 30㏈ pad

Phantom Power Protection

1/4" (6.35㎜) Yes

XLR Yes

NETWORKING

Network Interface Single Port Ethernet 10/100 Mbps

Network Addressing Capability DHCP or Manual IP address

Maximum Cable Length 100 m (328 ft)

SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER

Battery Type Rechargeable Li-Ion or 1.5 V AA batteries

Dimensions (Dia. × L)1.46 × 6.93 in

Weight 5.2 oz.

Housing Aluminum

AUDIO INPUT

Configuration Unbalanced Maximum Input Level 8.2㏈V (2.57 Vrms, 7.27 Vpp)

Audio-Technica ATW-3212N Combo System 3000 Series Networked receiver w/ bodypack & handheld transmitters

provides reliable, latency-free, and high-fidelity RF audio in the DE2 band (470.125-529.975 MHz). The highly sensitive system, with True Diversity operation and dual conversion silently switches to provide automatic drop-out free performance. Intuitive receiver controls and OLED display with visualizations facilitate quick-access functions and allow the user to easily adjust settings. An automatic squelch configuration adjusts the range to limit interference and indications on the bodypack provide Tone Lock, mute, and battery status. Additionally, the wireless microphone bodypack has a dual-color LED indicator, a tactile mute toggle, and a configurable multifunction button.

The ATW-T3202 handheld transmitter has a status display that automatically turns off and includes AT8456a Quiet-Flex stand clamp. The ATW-C510 wireless handheld & lapel microphone combo system is tailored for smooth, natural vocal reproduction, and it reduces off-axis sounds and feedback. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Data passed back to the receiver with this networked version, allows users to monitor all networked devices and status updates using a PC connected to the receiver's Ethernet port and a cable via LAN 100 Base-TX. The wireless microphone receiver is half-width for a standard 1U 19" rackmount and this product includes rack-mount adapter.

FEATURES:

Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in congested RF environments

Up to 40 simultaneous channels per bandVersatile, easy-to-use back-up frequency switching

Auto squelch automatically adjusts settings for optimal performance

With secure 4-pin, screw-down style cH-style connector on body-pack transmitter

Up to 40 simultaneous channels per band

Specifications for the Audio-Technica ATW-3212NC510 Combo System

OVERALL SYSTEM SPECIFICATIONS

Operating Frequencies

Band DE2 470.125 to 529.975 M㎐ (2395 frequencies)

Band EE1 530.000 to 589.975 M㎐ (2400 frequencies)

Band EF1 590.000 to 649.975 M㎐ (2400 frequencies)

Band FG1 650.000 to 699.875 M㎐ (1996 frequencies)

Minimum Frequency Step 25 k㎐

Modulation Mode FM

Maximum Deviation

ATW-T3201 ±38 k㎐ (THD:10%)

ATW-T3202 ±36 k㎐ (THD:10%)

Dynamic Range

ATW-T3201 Mic input > 115 dB (A-weighted), typical

ATW-T3201 Inst input > 112dB (A-weighted), typical

ATW-T3202 > 115 dB (A-weighted), typical

Total Harmonic Distortion <1.0% (at 1 k㎐, ±17.5 k㎐ deviation)

Operating Range

100 m (328')

Operating Temperature Range -5° C to +45° C (23° F to 113° F)

Frequency Response

ATW-T3201 31 ㎐ to 15,500 ㎐

ATW-T3202 25 ㎐ to 16,700 ㎐

Maximum Simultaneous Use (Recommended)

40 Channels per band*

RECEIVER SPECIFICATIONS

Receiving System True Diversity

Image Rejection 60 dB nominal

RF Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohms termination)

Antenna Power 12 V DC, 160 mA (combined)

Maximum Output Level

XLR, balanced +14 dBV

6.3 mm (¼"), unbalanced +8 dBV

Antenna Input BNC-type, 50 ohms

Power Supply 100-240V AC (50/60 ㎐) to 12V DC 1A (center positive) switched mode external power supply

Dimensions

210.0 mm x 191.0 mm x 43.4 mm (W x D x H)

8.27" x 7.52" x 1.71" (W x D x H)

Net Weight 1100 g (38.8 oz), without accessories

Accessories Included

Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters; AT8631 joining plate (ATW-R3210N only)

BODY-PACK TRANSMITTER SPECIFICATIONS

RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms

Spurious Emissions Following Federal and National Regulations

Input Connections

cH-style screw-down 4-pin connector

Pin 1: GND

Pin 2: INST INPUT

Pin 3: MIC INPUT

Pin 4: DC BIAS +5V

High-pass (low-freq. roll-off) 125㎐, 12dB/octave

Batteries Two 1.5V AA, not included

Battery Life

High 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)

Dimensions

64 mm x 82 mm x 23 mm (W x D x H)

2.52" x 3.22" x 0.91" (W x D x H)

Net Weight 102 g (3.6 oz), without batteries

HANDHELD TRANSMITTER SPECIFICATIONS

RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms

Spurious Emissions Following Federal and National Regulations

Microphone Capsule Interchangable industry standard thread

Batteries Two 1.5V AA, not included

Battery Life

High 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)

Dimensions

ATW-T3202 (without capsule) 193 mm (7.60") long, 37 mm (1.46") maximum diameter

ATW-T3202/C510 265 mm (10.43") long, 54 mm (2.13") maximum diameter

ATW-T3202/C710 271 mm (10.67") long, 50 mm (1.97") maximum diameter

Net Weight

ATW-T3202 (without capsule) 200 g (7.1 oz), without batteries

ATW-T3202/C510 330 g (11.6 oz), without batteries

ATW-T3202/C710 314 g (11.1 oz), without batteries

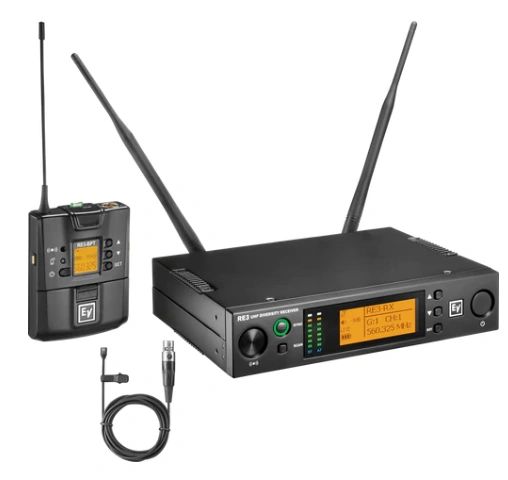

EV RE3-BPOL UHF WIRELESS SET FEATURING OL3 OMNI-DIRECTIONAL LAVALIER MICROPHONE

5L (488 – 524 MHz)

5H (560 – 596 MHz)

6M (653 – 663 MHz)

Bodypack UHF wireless set featuring OL3 omnidirectional lavalier microphone for voice performance and presentations. The OL3 delivers an open and natural sound even when the user is turning their head side-to-side, and its low-profile design eliminates unsightly presence other larger sized lavaliers present.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

EV RE3-HHT76 UHF WIRELESS TRANSMITTER FEATURING ND76 DYNAMIC CARDIOID MICROPHONE
