RANE MLM-82S Mixer

Rane Commercial MLM82S is a versatile mixer that offers a variety of mic/line input and assignable output options, ideal for installations requiring ease of use and compact size, in hotels, conference rooms, schools, and more.

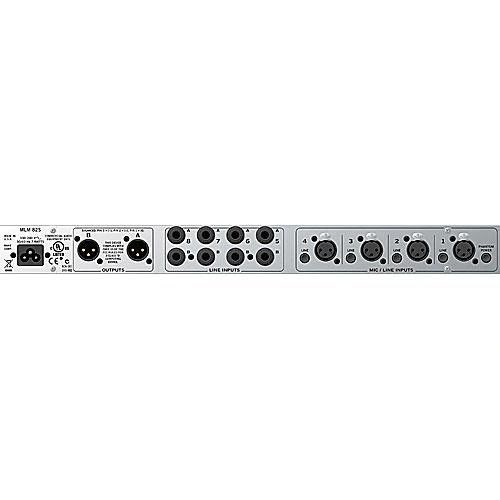

The mixer features four balanced, mono mic-/line-level inputs with XLR connectors and up to 60 dB of gain. Four stereo line-level inputs with up to 12 dB of gain are fed via the eight 1/4" inputs. A single button on the back engages 15 VDC phantom power on the mic inputs to allow the use of compatible condenser microphones.

The mic/line inputs can be assigned to the A, A+B, or B main outputs, the two XLR outputs are equipped with an internal switch for padding the output signal to mic level.

With a 1-RU, all-steel design, the rugged MLM82S easily fits in a standard effects rack for mobile applications.

Mono Mic/Line Inputs

        4 x female XLR balanced, mono mic-/line-level inputs with switchable 15 VDC phantom power
        Mic/line inputs may be individually assigned to the A, the A+B, or the B outputs
        Independent level/gain trim controls
        Signal/overload indicators for each input
        Phantom power is automatically removed from any input set for line operation

Stereo Line Inputs

        4 x pairs of female 1/4" TRS balanced, stereo line-level inputs with 12 dB of line gain
        Each stereo line input features a recessed mono switch with indicator, for four mono A inputs and four mono B inputs configuration
        Independent level controls

A and B Mic/Line Outputs

        2 x male XLR balanced, mono mic-/line-level outputs (A and B)
        A and B mix outputs each have an internal switch for padding the output signal to mic level
        Output-level knobs set the master mix level independently for A and B outputs
        Mix amplifiers feature independent overload indicators

Compact Design

        1-RU design makes the MLM82S convenient to transport in a standard effects rack

Inputs Type: Active, balanced

Mic/Line Connectors: 4 x XLR female, pin 2 = (+)

Stereo Line Connectors (4 x Pairs): 8 x 1/4" / 6.3 mm TRS phone female, tip = (+), ring = (-), sleeve = GND Mic/Line Inputs Mic/Line Impedance: 1 kOhm/96 kOhms, 1% (balanced 500 + 500 Ohms / 48 k + 48 kOhms)

Mic Gain Range: Off to +60 dB ±1.5

Line Gain Range: Off to +20 dB ±1.5

Equivalent Input Noise: -128 dBu, typ, 20 kHz bandwidth, 150 Ohms termination

THD & Noise: 0.02% max, gain = 40 dB, +4 dBu at 1 kHz, 80 Hz BW

Frequency Response: 30 Hz to 35 kHz -3 dB

Maximum Input: 11.9 dBu, typ minimum gain (3 Vrms)

Maximum Input at Mic Level: 38.6 dBu, typ, maximum gain (9.1 mVrms) Stereo Line Inputs Impedance: 20 kOhms, min

Gain Range: Off to +12 dB, ±1

Signal-To-Noise Ratio: 90 dB, typ, unity gain, output at +4 dBu, 22 kHz BW

Frequency Response: 10 Hz to 35 kHz, -3dB

THD & Noise: 0.007%, max, +4 dBu at 1 kHz, 80 kHz BW Mic/Line Outputs Type: Active, balanced

Connectors: 2 x XLR, male

Impedance: 200 Ohms / 100 Ohms, 1%, line level out / mic level out

Gain Range: Off to +6 dB ±2

Drive Level: +24 dBu, 600 Ohms, load-balanced Crosstalk -75 dB at 1 kHz, max, re + 4 dBu any channel to any channel Phantom Power +15 VDC, 4% Output Cable Length 1500' / 457 m, typ, line-level, <50 pF per foot Power Requirements 100 to 240 VAC, 10%

50/60 Hz

7 W Construction All-steel Certifications CE, FCC, cULus Dimensions (HxWxD) 1.75 x 19 x 5.3" / 4.4 x 48.3 x 13.3 cm (1 RU) Weight 4 lb
