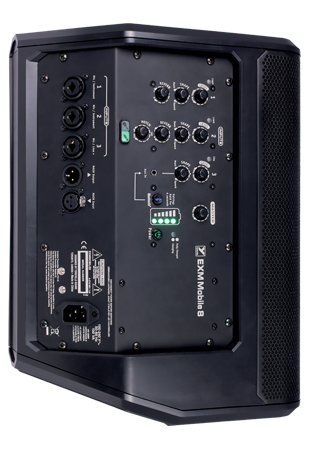

Yorkville EXM-Mobile-8 3-way Battery Powered Portable PA System
Specifications
Power Rating (Watts) 200 watts program (100 Low, 50 Mid, 50 High)
Max SPL (dB) 117dB Cont, 123dB Peak
Frequency Response (Hz +/- 3dB) 60 - 20K (Hz +/-3dB)
HF Dispersion (°H x °V) 90 x 90
Power Requirements 100-240V, 50-60Hz, 100VA
Power Consumption While Charging 32 Watts (battery fully discharged and unit idling)
Speaker Configuration - LF 8 inch Neo
Speaker Configuration - HF 5-inch/1-inch Dome Neo Coaxial
Inputs 8
Channel 1 Input XLR / ¼-inch Combi-jack
Channel 1 Controls Level, Shape, Reverb
Channel 2 Input XLR / ¼-inch Combi-jack
Channel 2 Controls Level, Shape, Reverb, Acoustic Guitar EQ & Notch
Channel 3 Input 1/8-inch TRS Stereo Jack, XLR / ¼-inch Combi-jack
Channel 3 Controls Level, Shape
Master Volume Control Yes
Link In/Out (type / configuration) XLR (Male and Female)
LED Indicators Power, BluetoothTM, 4x Battery Level, Charging Status, Guitar /Mic, Limit (CH1, CH2), Clip (CH3),
Dimensions (DWH xbackW, inches) 11.5 x 10.125 x 15.5
Dimensions (DWH xbackW, cm) 29.2 x 25.7 x 39.3
Weight (lbs/kg) 17 / 7.75
